Thermal Fusion Night Vision Bincoulars with GPS, digital compass and marking
Marking Thermal Imaging Binoculars Fuse Day and Night Vision Binoculars find human is very easy



TL300 enhanced thermal fusion day and night vision binoculars with GPS, Company and Marking

China TianYing TL300 thermal fusion night vision binoculars is enhanced dual channel binoculars, uses day and night type night vision technology fused with thermal imagery, thereby bridging the gap in performance and capability for both of these sensors, provides the operator with significantly improved targeting and identification in all conditions.

Integrated night vision allows to detect man out to 600m and recognize man out to 400m in 1/4 moon, integrated thermal imaging allows to recognize man-size targets in excess of 600m.

This gives the warfighter substantially increased situational awareness, because threats can be detected in virtually any environment. Bad guys that would normally be camofluaged in foliage, rock formations, etc can now be easily detected from a safe distance.

By prominent marking capability, operator can quickly find cloaked and camouflaged object in day and night, especially effective in urban operations. Option add digital compass and BDS or GPS function.

Question:
1, Why many thermal fusion binoculars price is very cheap?

Because their binoculars is thermal fusion daytime visible light CCD camera, their CCD camera is only work on daytime, but they are only simple fusion, also their fusion effect is not good too.

2, Why image fusion need environment mode?

Because image fusion environment mode will add fusion effect.

3, Why image fusion need marking function?

Because marking function will sharpen and highlight fusion effect, also then good marking can quickly find cloaked and camouflaged target.

4, Why this fusion binoculars price is higher than other company' fusion binoculars?

Because quality is different,if used for same standard, then our price is very cheap.

You need know that only good image quality military thermal binoculars price or only good image quality military day and night type white autogated night vision binoculars price is not cheap.

TL300 Enhanced Thermal Imaging Binoculars Fusion Day and Night Vision Binoculars Specification:

Model TL300
Thermal imaging channel
Sensor type Uncooled Vanadium Oxide
Resoluiton 640x512
Pixels pitch 17microns
Objective lens 38mm F1.0
NETD ≤ 45mK 25ºC
Field of View,°,  16 x 12°
Detect range ≥600m for human,  ≥1500m for vehicle
Recognize range ≥400m for human,  ≥800m for vehicle
Low light night vision channel
Sensor type day and night type solid-state night vision
Resolution 800x600
Pixels pitch 18microns
Lens focus 40mm F1.2
Field of View,° 16 x 12°
Detect range( day time) ≥800m for human, ≥1500m for vehicle
Recognize range (0.001lux night) ≥150m for human, ≥300m for vehicle
Digital Compass and BDS or GPS Function
BDS or GPS Option
Digital compass Option
Display resolution 0.39'' 1024 x 768 OLED
Diopter adjustment, diopter -4 to +2 D
Image mode thermal imaging mode, low light mode, fusion color mode, fusion black and white mode
Image fusion environment mode jungle mode, snow land mode, ocean mode, city mode, desert mode
Marking fuction Yes
Photo and video BMP photo, AVI video, playback, delete, search.
Storage photo and video TF card 32G
Video output Q9 CCIR (PAL compatible)
Interface USB and RS232
Power
Power Supply, V 3 x 18650 type rechargeable lithium battery
Operating time, hour ≥ 5 hours with built-in 3 pcs 18650 batteries.
Environmental Adaptability
Operating Temperature,°С - 40 … +55
Storage temperature, °C -50 ... +70
Level of Protection IP67
Physical
Tripod mount, inch 1/4
Dimensions, mm 205 x 160 x 70
Weight (with batteries), kg 1.35
* -Note   *- Technical information is subject to change without notice.
** - Depending on the region of sale.



 TL300 Fusion Thermal Imaging Night Vision Binoculars - desert mode

TL300 Fusion Thermal Imaging Night Vision Binoculars - desert mode

thermal imaging working distance contrast night vision working distance, you can see their working distance is similar.

thermal imaging working distance contrast night vision working distance, you can see their working distance is similar, but in 380m can recognize human.

thermal imaging working distance contrast night vision working distance, show human image size is very small and especially night vision

thermal imaging working distance contrast night vision working distance, 650m show human image size is very small and especially night vision.

TL300 thermal binoculars see 900m

TL300 thermal binoculars recognize 900m vehicle

TL300 night vision binoculars see 900m, by image can see Halo size, this is typical Gen 3 and Gen 3+ technology

TL300 night vision binoculars recognize 900m vehicle, by image can see Halo size, this is typical Gen 3 technology, day and night type night vision is white autogating technology.TL300 Fusion Thermal Imaging Night Vision Binoculars - jungle modeTL300 Fusion Thermal Imaging Night Vision Binoculars - jungle mode

TL300 Fusion Thermal Imaging Night Vision Binoculars - black and white modeTL300 Fusion Thermal Imaging Night Vision Binoculars - black and white mode

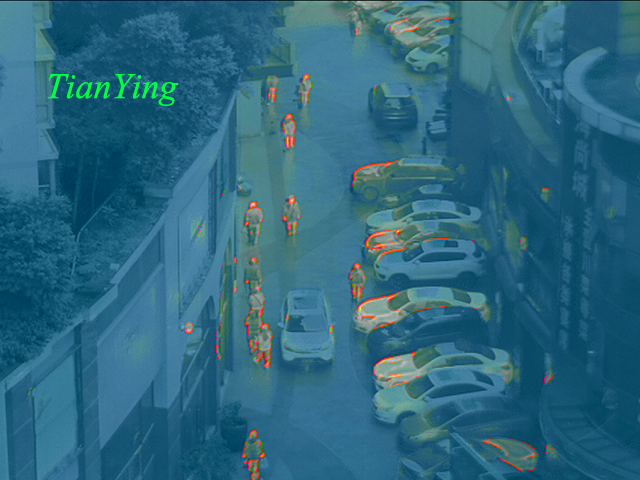

TL300 Fusion Thermal Imaging Night Vision Binoculars - city modeTL300 Fusion Thermal Imaging Night Vision Binoculars - city mode

TL300 Fusion Thermal Imaging Night Vision Binoculars - snow modeTL300 Fusion Thermal Imaging Night Vision Binoculars - snow mode

TL300 Fusion Thermal Imaging Night Vision Binoculars - ocean modeTL300 Fusion Thermal Imaging Night Vision Binoculars - ocean mode





You can quickly find weak infrared radiation target and the tree shade target by the video.
