5km Human TV IR Tracking Surveillance Electro-Optics System

Model No.︰

EOST-330M

Brand Name︰

TianYing

Country of Origin︰

China

Minimum Order︰

3 set

Share on:

Product Description

China TianYing EOST-330M electro-optics system deliver for coaxial alignment target, stable tracking surveillance, effective accurate measurement, and detection human beyond 5km.

EOST-330M thermal camera system offer precise information and clear view, which is why TianYing Optical seeks to offer the most reliable surveillance solution. It is a fully stabilized, compactly designed surveillance system which bundles various state-of-the-art sensors. Thus, offering the user a large variety of functions comprised in only one device.

The EOST-330M thermal camera system is installed in platforms on land vehicles, ships or tower. it is available as a stand-alone unit or can be fully integrated into CMS systems.

EOST-330M Tracking Surveillance EO/IR Thermal Camera System Features:
1. Day and night reconnaissance, detection, identification and stable tracking of sea, land, and some air targets.

2. Maximum threat recognition solution with the lowest cost of ownership.

3. Highly reliable system capable of operating in the harshest environments.

4. Ruggedized two axis stabilizing gimbal system capable of wind-proof grade 12.

5. Longest range uncooled thermal imager, recognize human 3km, recognize vehicle 7km, recognize boat 7km.

EOST330M tracking surveillance thermal camera system recommended use:
1) Maritime Patrol.

All weather surveillance, day/night long stand-off range detection, identification and tracking of naval target, land target and some air target.

2) Search and Rescue

All weather, day/night detection of naval units in distress and/or men at sea.

3) Coast Guard/Border Suveillance/Police Operations.

All weather, day/night detection, identification and tracking of illegal activities (immigration, smuggling, poaching, etc...).

4) Land Operations.

All weather, day/night support to surveillance, reconnaissance, target detection and track task.

EOST-330M Tracking Surveillance EO/IR Thermal Camera System Specifications:

Model EOST-330M
THERMAL CAMERA
Detector Uncooled FPA
Pixel  >640x512
Spectral band 8μm~14μm
Pixel 17mm x 17mm
Focal length 100mm/330mm
DAY LIGHT CAMERA
Detector  1/1.8" CMOS
Focal length 30x optical continuous zoom lens
Resolution 1920×1080
LASER RANGE FINDER
Wavelength 1.57μm
Ranging 10km for 30% reflection 5m² target in visibility 25km
Measuring rate 2Hz continuous 25 seconds
Measurement accuracy ≤ +/-1m
Laser classification Class 1 (EN 60825-1:2007)
SERVO
Stabilization accuracy typical 1.3mrad(1σ), option 0.2mrad.
Turret direction range azimuth:360° continuous; elevation:+45°~-45°
TURRET MAXIMUM ANGLE SPEED
Azimuth ≥20°/s
Pitch ≥20°/s
ENVIRONMENTAL
Operating temperature range -40ºC ~ +60ºC
Storage temperature range -50ºC ~ +70ºC
Protection level IP66, wind-proof grde 12
POWER
Power Supply DC 24V
PHYSICAL
Sweeping radius ≤ 750mm
Hight ≤ 1360mm
Weight ≤ 200kg (exclude installation base)
Note 1, Technical information is subject to change without notice.
2, Depending on the region of sale.





Product Image

3km/7km Stable Tracking Viewing EO/IR Thermal Imaging Camera System with 640x512 56mk 8.3° to 1.8° -33km/7km Stable Tracking Viewing EO/IR Thermal Imaging Camera System with 640x512 56mk 8.3° to 1.8° -3

TainYing 320x256 image and 640x512 imageTainYing 320x256 image and 640x512 image

50mm focus thermal camera can not find human50mm focus thermal camera can not find human

100mm focus themral camera can detect human100mm focus themral camera can detect human

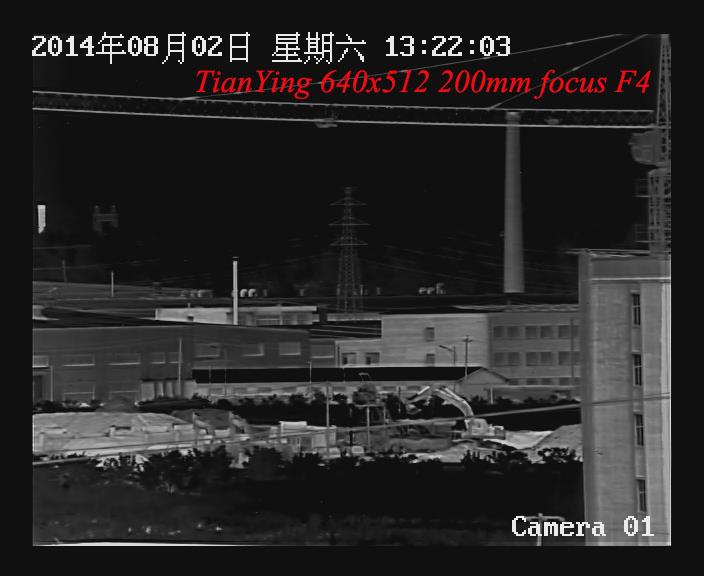

200mm focus themral camera can recognize human200mm focus themral camera can recognize human

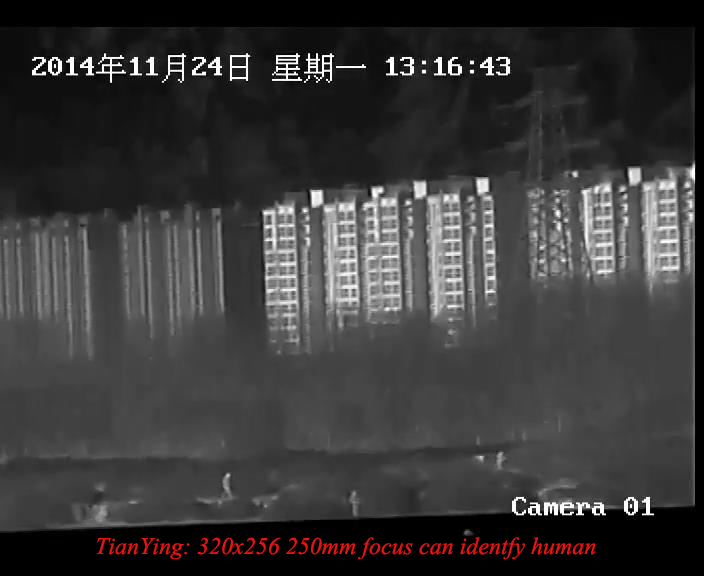

250mm focus themral camera can identify human250mm focus themral camera can identify human

330mm focus thermal camera can clearly identify human330mm focus thermal camera can clearly identify human



TianYing electric optical turret system thermal camera auto tracking airplane.



TianYing 640x512/640x480/1024x768 thermal camera search target.



TianYing 640x512/640x480 thermal imager see person target.



TianYing 640x512/640x480/1024x768 continuous focus uncooled thermal camera search target.
