C1000 16km Man Surveillance Cooled Thermal Imaging Camera
  • C1000 16km Man Surveillance Cooled Thermal Imaging Camera
  • C1000 17km - 21km (vehicle) 640x512 Cooled Thermal Imaging Camera - 200mm Focus Imaging
  • C1000 17km - 21km (vehicle) 640x512 Cooled Thermal Imaging Camera - 1000mm Focus Imaging

16km Man 40~1000mm Coaxial Zoom Cooled Thermal Camera

Model No.︰

C1000

Brand Name︰

TianYing

Country of Origin︰

China

Unit Price︰

-

Minimum Order︰

2 pc

Share on:

Product Description

China TianYing C1000 cooled thermal imaging camera deliver high reliability, sharp clarity image, recognition man 10km and detection man 16km - 640x512, that were especially designed for use by defense and homeland security system integrators. The C1000 offers maximum sensor range performance by using proprietary three or four fields-of-view lens, highly sensitive sensors and unique video enhancement algorithms.

The C1000 provides the ability to alternate rapidly among of three focal lengths. this three fields of view derived from the same principles as human vision, this way operators can see further, recognize more detail and react more quickly to security threats. the 13.8° or 20° wide angle view will give you excellent situational awareness.

The camera features a fast switching FOV zoom accurate boresight cooled thermal camera with very compact size, that is very convenient alone use and easy integrated into the customer's gimbals, such as airborne/ maritime/ border /coastal gimbal system.

C1000 surveillance extreme long-range cooled thermal imaging cameras specification features:
1) Through-zoom boresight better than 2 pixels or 1 pixel deviation.

2) MRTD better than 300mK(F4).

3) Provides the ability to alternate rapidly among of two focal lengths (switching time plus focusing time).

4) Two ways video output: one way 50Hz/60Hz analog and one way 100Hz/120Hz digital camera link.

5) Control interface RS232/RS422 alternative.

6) Cooler MTTF > 10000 hours.

7) Working low temperature (-40° C) and high temperature (+60° C or +70° C).

8) Easy operation, high reliability, easy to be integrated into the customer's gimbals, such as airborne/ maritime/ border /coastal gimbal system.

C1000 extreme long range thermal imaging infrared camera recommended use:
1. Long range accuracy measurement aiming.

2. Long range accuracy weapon sight.

3. Long range accuracy defense.

4. Long range accuracy target tracking.

5. Anti-missile.

C1000 surveillance extreme long-range cooled thermal imaging cameras Specifications:

Model C1000
Detector Parameters
Detector type Cooled FPA HgCdTe
Pixels 640×512, 15μm×15μm
Spectral Range  3.7μm~4.8μm
NETD ≤25mK ( F/4.0 6ms typical < 20mK)
Cooling  ≤8min at 20ºC
Optics Parameters
Focus Length 40/200/1000mm.
FOV 13.8° x 11°/2.8° x 2.2°/0.55° x 0.44°
Option Focus Length 27.5/110/440/1000mm
FOV 20° x 16°/5° x 4°/1.25° x 1°/0.55° x 0.44°
Through-zoom boresight 0.5 pixels 5 pixels deviation according to demand.
Image Presentation
Video output  PAL
Frame frequency  50Hz(Analog) or 100Hz(Digital)
Brightness & Contrast  Auto/Manual
Polarity  BH&WH
Interfaces
Command and control  RS422, option RS232
Power Parameters
Power supply 24V DC
Environmental Parameters
Operating temperature  -40ºC~+60ºC
Storage temperature -50ºC~+70ºC
Quality GJB150
Physical Parameters
Weight  ≤25kg
Length ≤ 450mm
Color  Black
Range Performance
Detection/recognition human range Approx 16 km / approx 10km.
* - Note: *Technical information is subject to change without notice.
** - Depending on the region of sale.

When working range is more than 15km, then theory range data will decline rapidly, this is why 750mm, 1000mm and 1200mm focus 640x512 cooled thermal cameras detect range that is approx. 20km(vehicle) in normal weather condition, we already test 750mm focus, 1000mm focus, 1200mm focus, and 1650mm focus 640x512 cooled thermal camera working distance.



Custom WFOV to Ultra Extreme NFOV Long Range cooled thermal MWIR mid wave lenses are available, including 300mm diameter big lens.



Product Image

C1000 16km Man Surveillance Cooled Thermal Imaging CameraC1000 16km Man Surveillance Cooled Thermal Imaging Camera

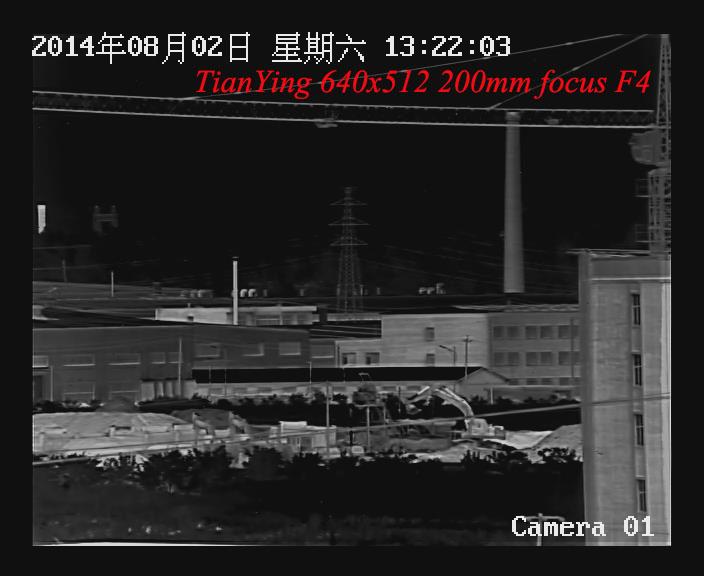

C1000 17km - 21km (vehicle) 640x512 Cooled Thermal Imaging Camera - 200mm Focus ImagingC1000 17km - 21km (vehicle) 640x512 Cooled Thermal Imaging Camera - 200mm Focus Imaging

C1000 17km - 21km (vehicle) 640x512 Cooled Thermal Imaging Camera - 1000mm Focus ImagingC1000 17km - 21km (vehicle) 640x512 Cooled Thermal Imaging Camera - 1000mm Focus Imaging

Custom WFOV to Ultra Extreme NFOV Long Range cooled thermal MWIR mid wave lenses are available, including 300mm diameter big lens.
