| Model |
TY-P15 |
| Day Night TV Camera |
| Sensor |
1/1.8 inch COMS 4 Megapixel 2688 x 1520 25Hz/30Hz. |
| Signal to noise ratio |
≥55dB (AGC OFF) |
| Coding format |
H.265 / H.264，H.265+/H.264+, HDMI/SDI/CVBS/RJ45 |
| Video bit rate |
32kbps~32Mbps |
| Storage Capabilities |
Micro SD/SDHC /SDXC card (256 GB) |
| Network Protocol |
ONVIF, HTTP, RTSP, RTP, TCP, UDP etc |
| Min. Illumination |
Color: 0.005Lux f1.5; B/W: 0.001Lux f1.5 |
| Image adjustment |
Brightness, contrast, saturation, sharpness, chroma etc |
| Image enhancement |
Strong light suppression, Exposure mode, BLC, ROI, 3D NR etc |
| Wavelength range |
400nm ~ 950nm (0.4~0.7μm daylight, 0.7μm~0.95μm NIR) |
| Field of View (2.9um-LAN),° |
Approx 31.9° x 18° ~ 0.44° x 0.25° |
| Focal Length |
14~1000mm continuous optical zoom. |
| Aperture |
F6~ F9 |
| Close-up distance, m |
Approx 5m(can be 1m) |
| Image stabilization |
Support |
| Electronic defog |
automatic, manual, manual mode defog level can be adjusted |
| Optics defog |
Support |
| Serial command |
Support rear focal adjustment, specify focal length etc function |
| AI detection and alarm |
Support area intrusion, cross-border,sound detection, behavior analysis etc |
| AI recognition |
Can accurately identify human figures, vehicles and other targets |
| Viewing distance |
≥10km (can be beyond 16km and even up to 21km) for human |

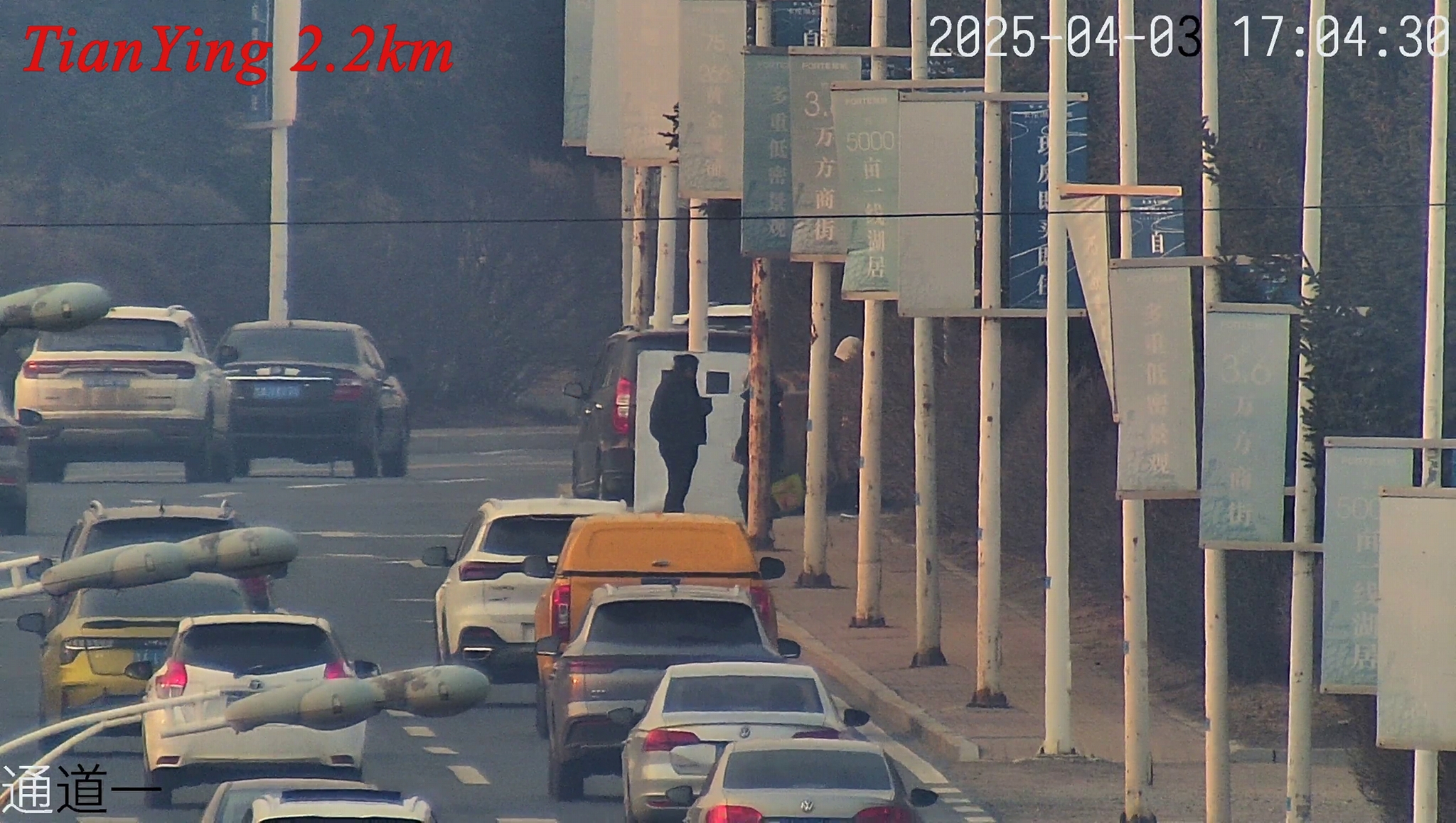

| Identify the person's face |
Approx 2.2km |
| Read the driving license plate |
Approx 2.2km |
| Thermal Camera |
| Sensor |
Uncooled vox sensor |
| Resolution |
384 x 288, option 640x512 |
| Pixel Size |
12μm |
| Spectral range |
8μm~14μm |
| NETD |
≤40mK@25ºC,F#1.0 |
| Focal Length |
150mm |
| Frame Rate |
25Hz |
| Digital Magnification |
2x, 4x |
| Fire detection distance |
≥11km for 2m×2m fire source target |
| Option AI Fire detection function |
Fire point detection, Fire area shielding, Abnormal temperature alarm, etc |
| Option AI function |
Intelligent analysis, intelligent recognition, pyrotechnic identification etc |
| Eye Safe Laser Rangefinder |
| Wavelength |
1.57µm |
| Effective ranging(standard 23.5km visibility, aerial craft such as plane at ≥5km flight altitude) |
| |
≥25km for large plane, even 28km; 30km(max 45km) for house; |
| |
≥5.6km(5.9km) of UAV 0.05m² (Phantom 4) |
| |
(>13.7km mountain has been proven in 3km visibility) |
| Max range capability |
45km |
| Measuring rate |
2Hz |
| Accuracy |
≤ 53m (option ≤ 30m and ≤ 6m, +/-1m only LRF) |
| Laser classification |
Class 1M / 3R (ICE 60825-1:2007 and ANSI 136.1-2007) |
| Pan/Tilt |
| Carrying capacity |
20kg(top load) |
| Random error of angular accuracy |
≤ 0.1º (option ≤ 0.06º 1mrad) |
| Electric accuracy |
≤ 0.03° (Lash electronically compensated) |
| Direction range |
azimuth:360° continuous; elevation:+14°~-58° |
| Pan stabilization speed |
0.01°/s to 30°/s |
| Tilt stabilization speed |
0.01°/s to 15°/s |
| Presets |
60 presets |
| Function |
Cruise, scanning, power-off memory, angle query and real-time return |
| Communication protocol |
Pelco-D |
| Material |
Precise casting aluminum alloy |
| Input / Output |
| Power supply |
DC24V |
| Network interface |
1×10Base-T/100Base-TX,RJ45 |
| Control interface |
RS485 |
| Audio interface |
1 x audio input, 1 x audio output |
| Alarm interface |
2 x alarm input, 1 x alarm output |
| Environmental Adaptability |
| Operating Temperature |
-40°C to +70°C |
| Working humidity |
10% to 95% |
| Windproof |
Strong wind resistance |
| Protection grade |
IP66, TVS6000V lightning protection, anti-surge, anti-surge |
| Physical |
| Power |
≤200W (including heating) |
| Weight |
Approx 35kg |
| Packing and Warranty |
| Standarding accessories packing |
hard case, user's manual, video cable, power cable |
| Warranty |
1 year warranty |
Note: *- Technical information is subject to change without notice. ** -Depending on the region of sale.
*** - Option add thermal camera. |
