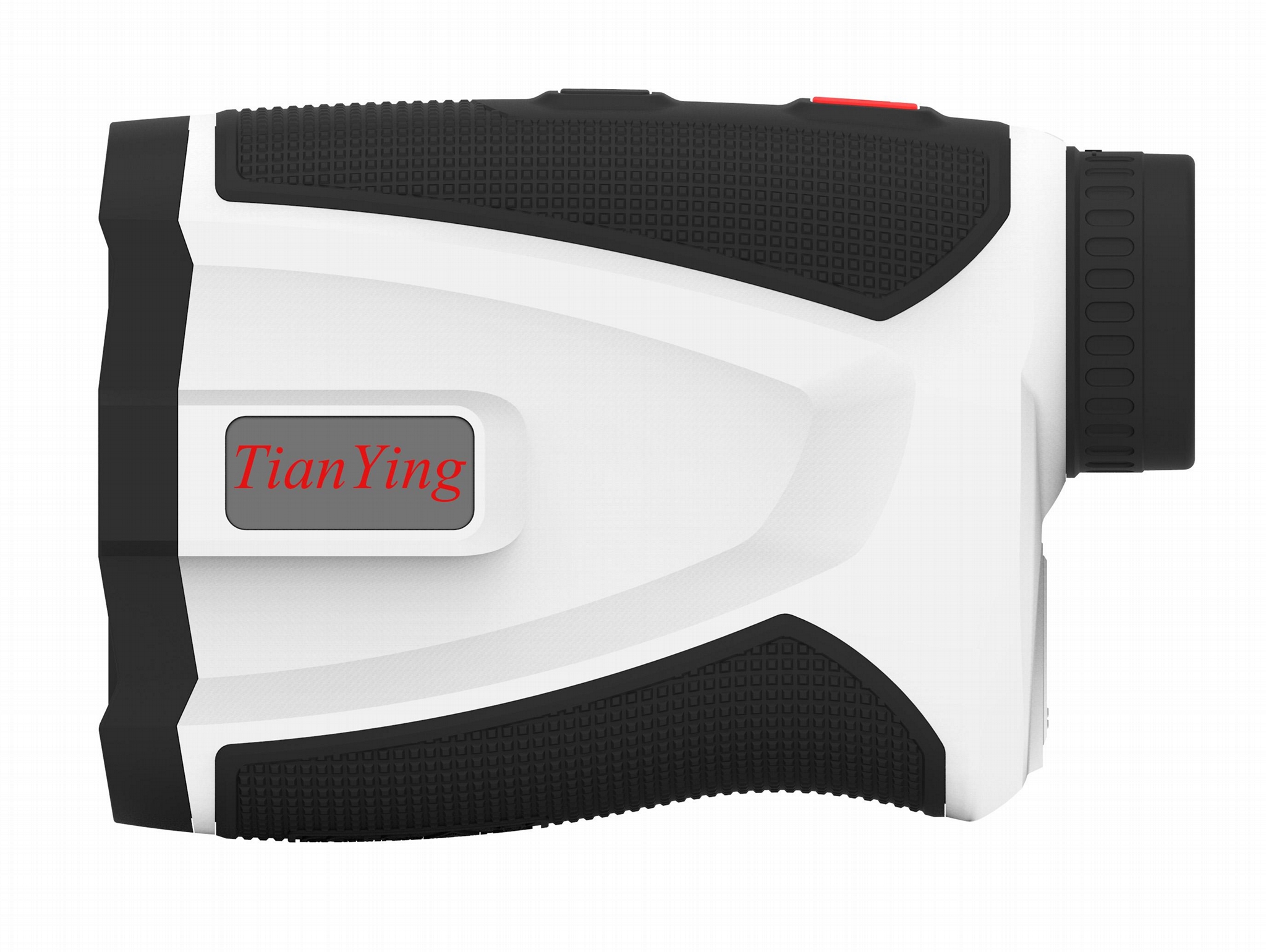

Flag 350yard House 1300yard Laser Rangefinder Telescope

Model No.︰

TY-LR07

Brand Name︰

TianYing or ODM

Country of Origin︰

China

Unit Price︰

-

Minimum Order︰

50 pc

Share on:
Total 5 Related Items

Product Description

1300yard 905nm Eye Safe Laser Rangefinder Mainly Specification:

Model TY-LR07
Optics
Magnification 6x
Objective Lens Diameter 24mm
Field of view 7.5°
Exit pupil distance 4mm
Eye Relief (mm) 18.4mm
Diopter Adjustment -5D to +5D
Lens coating: Multi-layer green coating
LCD Light transmittance >40%.
Rangefinder
Ranging capability 5 - 1300yard (flag 350yard)
Accuracy ± 0.5m to 1m
Measuring unit: meter, yard
Measuring time < 0.6 seconds
Wavelength 905nm
Pulse energy 150nJ
Pulse duration 20ns to 25ns
Laser classification FDA Class 1/ Semi-conductor laser, no harm to eyes
Display LCD
Working Mode : Scan mode, Range Mode, Fog Mode.
Electrical interface
Battery type 3V CR2
Battery life ,times 10000 times
Environmental conditions
Waterproof IPX4
Shockproof 1.5m high free falling
Mechanical interface
Size 105mm x 73mm x 39mm
Weight 230g
* - Note * Product design and Technical information is subject to change without notice.
** Depending on the region of sale.


Product Image
