S150 1500m - 2000m human Security Surveillance Infrared Thermal Imaging Camera
  • S150 1500m - 2000m human Security Surveillance Infrared Thermal Imaging Camera
  • thermal camera with pan/tilt
  • TianYing 320x256 Image and 640x512 Image
  • 50mm focus can not find human
  • 100mm focus can detect human
  • 200mm focus can recognize human
  • 250mm focus can identify human
  • 330mm focus can clearly identify human

2km man Security Surveillance Infrared Thermal Imaging Camera

Model No.︰

S150

Brand Name︰

TianYing

Country of Origin︰

China

Unit Price︰

-

Minimum Order︰

5 pc

Share on:

Product Description

China TianYing S150 thermal imaging cameras are designed for high reliability, sharp clarity image, recognition man 1500m and detection 2000m - 640x512 or 1024x768. the S150 is an ideal outstanding medium-range targeting solution in border protection and perimeter surveillance missions. The camera is very convenient alone use and easy integrated into system.

The thermal camera utilizes a high sensitivity high resolution thermal core and a 150mm f1.0 big lens, offer crisp imagery and a fast wide field-of-view derived from principles as human vision, get react real-time situational awareness.

The camera features shock resistance meet battlefield weapon sight standard, a sealed ruggedized design to ensure performance in harsh desert, ocean and mountainous environments. With its equivalent 640x512 150mm focus F2 lens and 320x256 280mm focus F4 lens cooled thermal camera recognition range performance, this camera give you lowest total cost of ownership.

S150 Thermal Imaging Infrared Camera Recommended Use:
1) Search rescue.

2) Border, coastal, perimeter etc surveillance.

3) Protection of sensitive sites.

4) Law enforcement.

5) Maritime patrol.

6) Weapon sites.

7) Force protection.

8) Target tracking systems and anti-aircraft systems.

9) Fire control systems for land, air and sea targets.

10)Special operations.

S150 surveillance infrared thermal imaging cameras specification:

Model D330 D200 S250 S200 S150
Sensor
Detector type Uncooled Vanadium Oxide
Pixels 640×512 or 1024x768
Pixel Pitch 17μm×17μm
Spectral Range  8μm~14μm
Detector NETD ≤ 40mK ( F/1.0, 25ºC, typical 30mk),  option < 30mK
Shock resistance (G) 750g/1ms
Lens Focus Length 100/330mm 50/200mm F1.1 250mm F1.1 200mm F1.0 150mm F1.0
Optics Parameters
Number of fields of view 2 1
Wide FOV 6.2°×5°  12.5°×10° 2.5°×2° 3.1°×2.5° 4.1°×3.3°
Narrow FOV 1.9°×1.5° 3.1°×2.5°
Wide FOV (1024 x 768) 10°×7.5°  20°×15° 4°×3° 5°×3.7° 6.6°×5°
Narrow FOV (1024 x 768) 3°×2.3° 5°×3.7°
Image Presentation
Video output  PAL 25Hz analog or Digital 8bit BT656/ CVBS
Frame frequency  25Hz/30Hz
Command Control Imaging Enhance, denoising, Polarity: White Hot / Black Hot,etc
Image Adjust Contrast, Brightness, digital zoom, Polarity and Shutter Notification.
Interfaces
Command and control  RS485, option RS422, RS232.
Power Parameters
Power supply 12V DC, option 24V DC
Environmental Parameters
Operating temperature  -40ºC~+55ºC
Storage temperature -50ºC~+70ºC
Quality GJB150 IP66, option IP67
Physical Parameters
Weight  ≤14kg ≤10kg ≤14kg ≤10kg ≤6kg
Size(length) ≤ 470mm ≤ 370mm ≤ 410mm ≤ 391mm ≤ 329mm
Color  Green
Range Performance
Effective range >5km(human)
>10km(vehicle)
3km(human)
7km(vehicle)
4km(human)
9km(vehicle)
3km(human)
7km(vehicle)
2km(human)
5km(vehicle)
Recognize range >3km(human)
>7km(vehicle)
2km(human)
5km(vehicle)
2500m(human)
6km(vehicle)
2km(human)
5km(vehicle)
1500m(human)
3500m(vehicle)
* - Note: *Technical information is subject to change without notice.
** - Depending on the region of sale.


Product Image

S150 1500m - 2000m human Security Surveillance Infrared Thermal Imaging CameraS150 1500m - 2000m human Security Surveillance Infrared Thermal Imaging Camera

thermal camera with pan/tiltthermal camera with pan/tilt

TianYing 320x256 Image and 640x512 ImageTianYing 320x256 Image and 640x512 Image

50mm focus can not find human50mm focus can not find human

100mm focus can detect human100mm focus can detect human

200mm focus can recognize human200mm focus can recognize human

250mm focus can identify human250mm focus can identify human

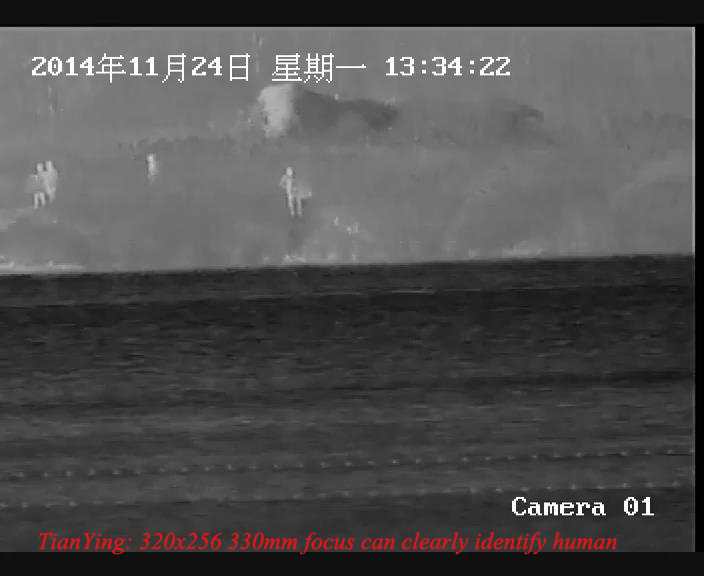

330mm focus can clearly identify human330mm focus can clearly identify human



TianYing electric optical turret system thermal camera auto tracking airplane.



TianYing 1024x768 thermal camera see vehicle and mountain.



TianYing 320x256 75mm f1.0 lens thermal imager see person 600m, 850m and 900m.



TianYing 640x512/640x480/1024x768 continuous focus uncooled thermal camera search target.
