384x288 25mm Thermal Imaging Camera Scope with 1200m LRF

Model No.︰


Brand Name︰


Country of Origin︰


Unit Price︰

US $ 1300 / pc

Minimum Order︰

3 pc

Share on:

Product Description

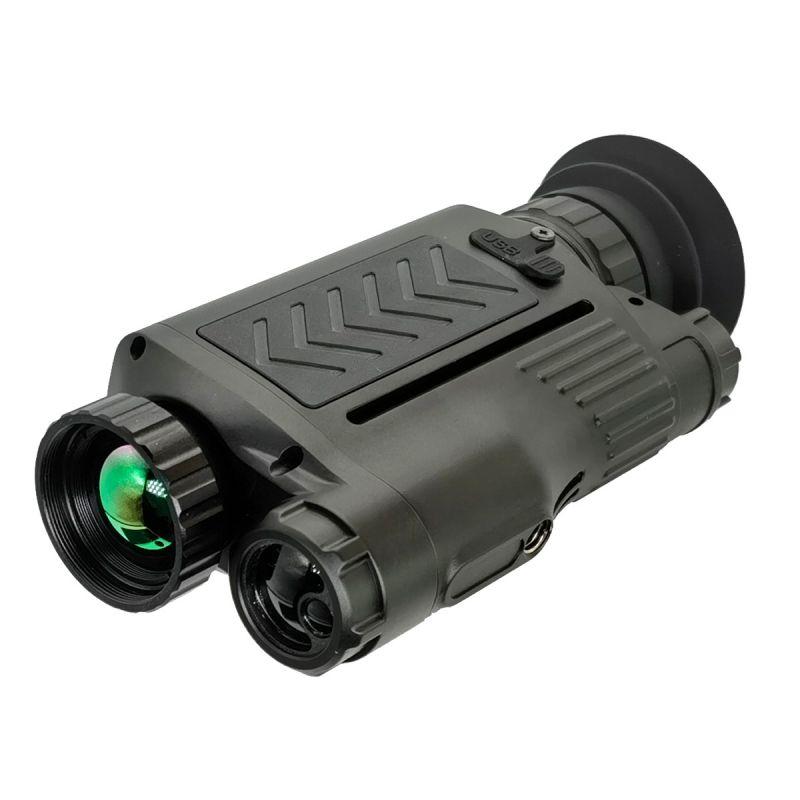

China TianYing LHS25 384x288 12um 35mK 25mm thermal imaging camera with 1200mm laser rangefinder is the outdoor IP67 low-cost day / night detection observation portable handheld thermal monocular with built-in storage function.

High sensitive thermal image Vox sensor with NETD 35mK allows you to detect targets by cutting through snow, dust, smoke, fog, haze, and other atmospheric obscurants. They can be used in various applications including hunting, observation, security, terrain orientation, search and rescue operations, etc.

LHS25 handheld thermal imaging scope monocular with built-in laser rangefinder Specifications:

Model LRS25
LRF Performance
Wavelength 905nm
Measuring range 5-1200m
Measurement accuracy ±1m
Safety class ( IEC 60825-1:2014) 1
FPA Formats 384 x 288 pixels Uncooled, Option 640x512
Pixel Pitch 12 μm × 12 µm
Frame Rate 50Hz.
Spectral response 8-14μm
Effective sensitivity ≤ 35mK F1.0 25ºC
Display Resolution, pix. 1024 x 768 OLED
Optics magnification 2.4x
Field of View,°, horizontal 10.6° x 7.9°
Objective Lens 25mm manual focus, option 35mm, 50mm
Diopter adjustment Support
Engage targets at ranges 530m for human, 514m-wild boar, 876m-vehicle.
Input / Output
Battery type 18500 battery
Operating time 6 hours with built-in battery (2040mAH)
Storage 16G
Image type BMP
Image Control
Command Control Imaging Enhance, denoising, Non-uniformity correction etc
Image Adjust Contrast, Brightness, 2x/4x zoom, Image detail mode
Color palette rainbow, hot metal, white heat, black heat, yellow saturation, bird watching mode
Hot spot tracking Support
Environmental Adaptability
Operating Temperature,°С -10°C to +50°C
Storage Temperature -20ºC to +60ºC
Environmental conditions IP65
Dimensions, mm Approx 150mm  x 39mm x 72mm
Weight, g Approx 330g
Note: *- Effective human target operational distance 530 meters is given at levels of 94.5% success probability and 2°C temperature difference between target and background.
**- Technical information is subject to change without notice. *** -Depending on the region of sale.

Product Image

You can quickly find weak infrared radiation target and the tree shade target by the video.
