2 Axis Platform 8km Electro-Optics Precision Targeting System
China TianYing TY-S4 electro-optics precision targeting system deliver auto tracking fighter beyond 12km, auto tracking helicopter beyond 8km and measurement target moving data.
TY-S4 thermal camera system offer precise information and clear view, which is why TianYing Optical seeks to offer the most reliable surveillance solution. It is a fully stabilized, compactly designed surveillance system which bundles various state-of-the-art sensors. Thus, offering the user a large variety of functions comprised in only one device.
The TY-S4 thermal camera system is installed in platforms on land vehicles, ships or tower. it is available as a stand-alone unit or can be fully integrated into CMS systems.
TY-S4 2 axis gimbal turret 8000m thermal imaging camera system Features:
1. Stable 360 degrees continuous turn gimble and max slew rotation speed 100 degrees per second.
2, The stabilization accuracy: < 0.5mard , normal delivery 200μradian (RMS).
3. The latest Uncooled 40mk 640x512 Infrared Thermal Imaging camera with F1 big lens.
4. Daylight/Lowlight CCD-TV with continuous zoom optics.
5. 5Hz/12.5Hz 12km laser rangefinder.
6. Day night detect fighter beyond 14km and auto tracking beyond 12km, detect helicopter beyond 10km and auto tracking beyond 8km.
7. Stable target tracking and Multi-model auto tracker.
8. Less than 73 cubic decimeter in size.
9. Less than 50kg in total weight.
10. Working temperature: -40°C to + 60°C.
11. Option radar tracking and output target coordinate.
TY-S4 2 axis gimbal turret thermal camera system recommended use:
1) Maritime Patrol;
All weather surveillance, day/night long stand-off range detection, identification and tracking of naval targets.
2) Search and Rescue;
All weather, day/night detection of naval units in distress and/or men at sea.
3) Coast Guard/Police Operations;
All weather, day/night detection and identification of illegal activities (immigration, smuggling, poaching, etc...).
4) Land Operations;
All weather, day/night support to surveillance, reconnaissance, target detection and track task.

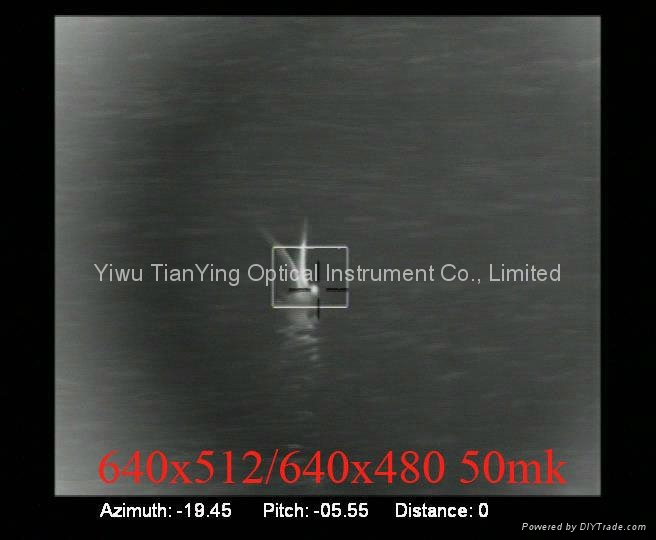

2 Axis Platform VOx 640x512 50mk Thermal Imaging Camera System auto tracking-1
2 Axis Platform VOx 640x512 50mk Thermal Imaging Camera System auto tracking-2

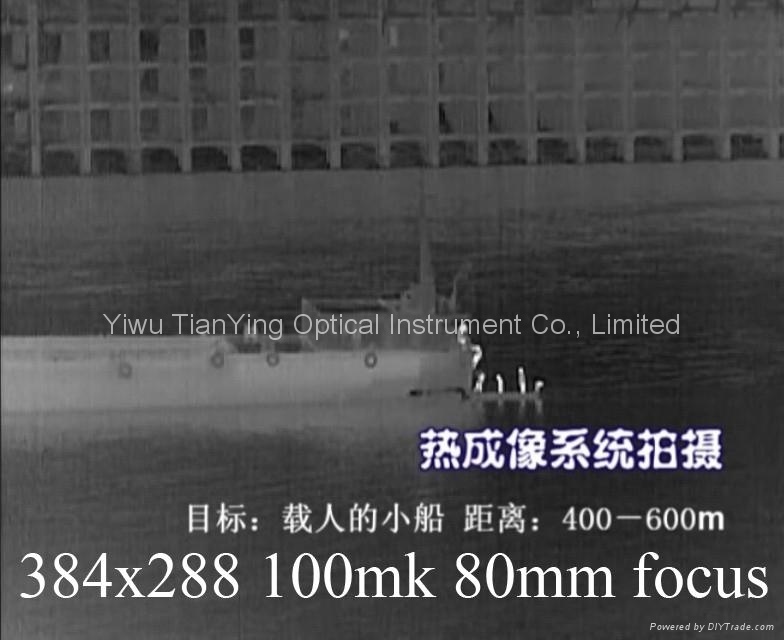

ASi 384x288 100mk 80mm focus see 600m man and ship
ASi 384x288 100mk 80mm focus see 1000m ship
TianYing electric optical turret system thermal camera auto tracking airplane.
TianYing 640x512/640x480/1024x768 thermal camera search target.
TianYing 640x512/640x480 thermal imager see person target.
TianYing 640x512/640x480/1024x768 continuous focus uncooled thermal camera search target.
