China TianYing D330 thermal imaging cameras are designed for high reliability, sharp clarity image, recognition vehicle 7km and detection beyond 10km - 640x512 or 1024x768, the D330 is an ideal outstanding medium long-range targeting solution in border protection and perimeter surveillance missions. The camera is very convenient alone use and easy integrated into system.
The D-330 offers two fields-of-view options for long-range detection and identification, but provides the ability to alternate rapidly among of two focal lengths. this two fields of view derived from the same principles as human vision, this way operators can see further, recognize more detail and react more quickly to security threats.
The camera features an uncooled infrared sensor with a ruggedized design to ensure performance in harsh desert, ocean and mountainous environments. With its equivalent 640x512 300mm focus f 2 lens and 320x256 600mm focus F4 lens cooled thermal camera recognition range performance, this camera give you lowest total cost of ownership.
D330 Switch FOV Thermal Imaging Infrared Camera Recommended Use:
1) Search rescue.
2) Border, coastal, perimeter etc surveillance.
3) Protection of sensitive sites.
4) Law enforcement.
5) Maritime patrol.
6) Weapon sites.
7) Force protection.
8) Target tracking systems and anti-aircraft systems.
9) Fire control systems for land, air and sea targets.
10) Special operations.
D330 Switch FOV surveillance infrared thermal imaging cameras specification:
|Detector type||Uncooled Vanadium Oxide|
|Pixels||640×512 or 1024x768|
|Detector NETD||≤ 40mK ( F/1.0, 25ºC, typical 30mk), option < 30mK|
|Shock resistance (G)||750g/1ms|
|Lens Focus Length||100/330mm||50/200mm F1.1||250mm F1.1||200mm F1.0||150mm F1.0|
|Number of fields of view||2||1|
|Wide FOV (1024 x 768)||10°×7.5°||20°×15°||4°×3°||5°×3.7°||6.6°×5°|
|Narrow FOV (1024 x 768)||3°×2.3°||5°×3.7°|
|Optical Axis Accuracy||option up to 1 pixels|
|Video output||PAL 25Hz analog or Digital 8bit BT656/ CVBS|
|Command Control||Imaging Enhance, denoising, Polarity: White Hot / Black Hot,etc|
|Image Adjust||Contrast, Brightness, digital zoom, Polarity and Shutter Notification.|
|Command and control||RS485, option RS422, RS232.|
|Power supply||12V DC, option 24V DC|
|Quality||GJB150 IP66, option IP67|
|Size(length)||≤ 470mm||≤ 370mm||≤ 410mm||≤ 391mm||≤ 329mm|
|* - Note:||*Technical information is subject to change without notice.
** - Depending on the region of sale.
50mm/200mm F1.0/F1.1 LWIR dual FOV hardened, coated/sealed germanium lens.
50mm/250mm F1.2 or F1.0, dual FOV hardened, coated/sealed germanium lens.
100mm/330mm F1.2/F1.4, dual FOV hardened, coated/sealed germanium lens.
150mm F1.0 LWIR single FOV hardened, coated/sealed germanium lens.
200mm F1.0, single FOV hardened, coated/sealed germanium lens..
250mm F1.1 or F1.0, single FOV hardened, coated/sealed germanium lens.
45-180mm F1.2 or F1.0, LWIR continuous zoom hardened, coated/sealed germanium lens.
25-250mm F1.5, continuous zoom hardened, coated/sealed germanium lens.
75-330mm F1.4, continuous zoom hardened, coated/sealed germanium lens.
TianYing 320x256 image and 640x512 image
thermal camera 50mm focus can not find human

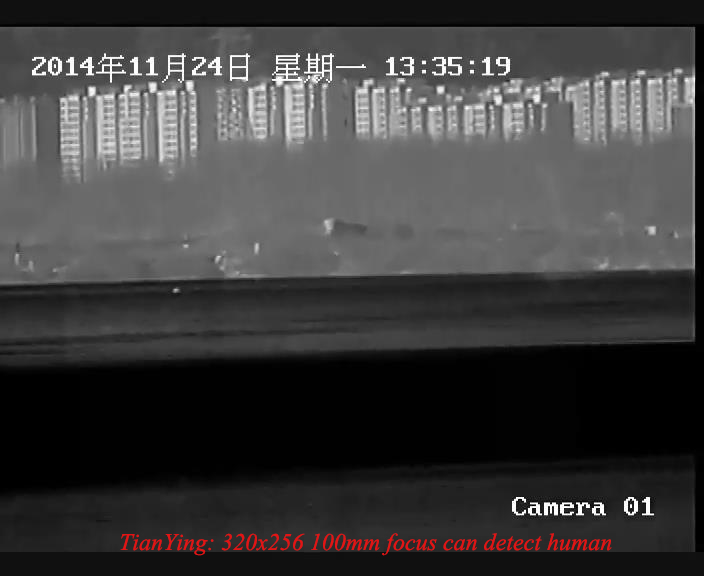

thermal camera 100mm can detect human
thermal camera 200mm focus can recognize human
thermal camera 250mm focus can identify human
themral camera 330mm focus can clearly identify human
TianYing electric optical turret system thermal camera auto tracking airplane.
TianYing 640x512/640x480/1024x768 thermal camera search target.
TianYing 640x512/640x480 thermal imager see person target.
TianYing 640x512/640x480/1024x768 continuous focus uncooled thermal camera search target.
