5km Human 10km Tank Alignment Measuring Tracking Electro-Optics Targeting System
China TianYing TY-P1 electro-optics system is specially designed for precise alignment, clear surveillance tracking, and effective accuracy measurement. the system is including coaxial wide spectral band CCTV camera, coaxial long focus uncooled thermal imaging, high rate mid-long range eye safe laser rangefinder, high accurate mid-speed turret and auto tracking function.
With its combination of a large field of view for wide-area observation and detection, and a small field of view for identification, it fulfills the highest requirements for the seamless surveillance of land and maritime borders and is equally suited for the protection of critical infrastructure.
The system features line of sight of coaxial cameras and turret is bore-sighted with laser rangefinder, then up to effective accurate measurement. The TY-P1 can be operated as a stand-alone or integrated into existing legacy operating systems. The camera is suited for use in stationary solutions - for example mounted on masts, tripods, vehicle or building structures - as well as mobile applications.
TY-P1 measuring tracking surveillance EO/IR thermal camera system features:
1) Effective accurate measurement due to precise alignment target of coaxial camera with LRF and turret.
2) Mid-range no chromatic aberration HD coaxial zoom quick auto day sight TV camera with SWIR NIR.
3) Mid-range SD coaxial zoom infrared thermal imaging sight camera(option cooled and uncooled).
4) High accuracy high rate 20km eye safe laser rangefinder(drone 4.2km have been proven).
5) Auto tracker function with analog video, option digital video.
6) Compact ruggedized design with hermetically sealed house and suited vehicle mount (weight < 56 kg).
TY-P1 Tracking Surveillance EO/IR Thermal Camera System Specifications:
|Detector||Uncooled Vanadium Oxide|
|Pixel||17mm x 17mm|
|Focal length - Option 1||100/330mm (N:1.9°, W: 6.2° for FOV horizontal)|
|Focal length - Option 2||75mm to 330mm continuous zoom (1.9° to 8.3° for FOV horizontal)|
|Detection human range||Approx 5 km|
|Recognition human range||Approx 3 km|
|Option cooled thermal camera||30mm to 300mm continuous zoom (1.8° to 18.3° for FOV horizontal)|
|Day Light Camera|
|Focal length||30x optical continuous zoom lens.|
|Wavelength||400nm ~ 1100nm (0.4μm~0.7μm daylight, 0.7μm~1.1μm NIR SWIR)|
|Detection range||Approx 6km for human, Approx 10km for 6m x 3m vehicle/boat|
|Recognize range||Approx 4km for human, Approx 8km for 6m x 3m vehicle/boat|
|Laser Range Finder- Option|
|Beam divergence||≤ 0.5 mrad.|
|Typical ranging||18km-20km (>10km 30% albedo 5m² aircraft) in visibility 23.5km|
|Measuring rate||1Hz continuous and 2Hz burst 25 seconds|
|Safety class||Class 1|
|Direction range||azimuth:360° continuous; elevation:+45°~-45°|
|Directing speed range for azimuth||0.05°/s to 45°/s|
|Directing speed range for elevation||0.05°/s to 45°/s|
|Programmable Search||Program multiple preset scene locations|
|Operating temperature range||-32ºC ~ +60ºC|
|Storage temperature range||-40ºC ~ +70ºC|
|Power Supply||DC 24V|
|Power consumption||≤ 80W (average for typical operation profile)|
|System Features and Physical|
|Boresighting||line of sight of cameras is boresighted with laser rangefinder|
|Size||appr. 800 mm x 650 mm x 450 mm|
|Note||1, Technical information is subject to change without notice.
2, Depending on the region of sale.
HD300P 2MP 10~300mm Coaxial Zoom no chromatic aberration Defog CCTV Camera in 10mm focus
HD300P 2MP 10~300mm Coaxial Zoom no chromatic aberration Defog CCTV Camera in 240mm focus
HD300P 2MP 10~300mm Coaxial Zoom no chromatic aberration Defog CCTV Camera in 300mm focus
TianYing electric optical surveillance system thermal camera auto tracking airplane.

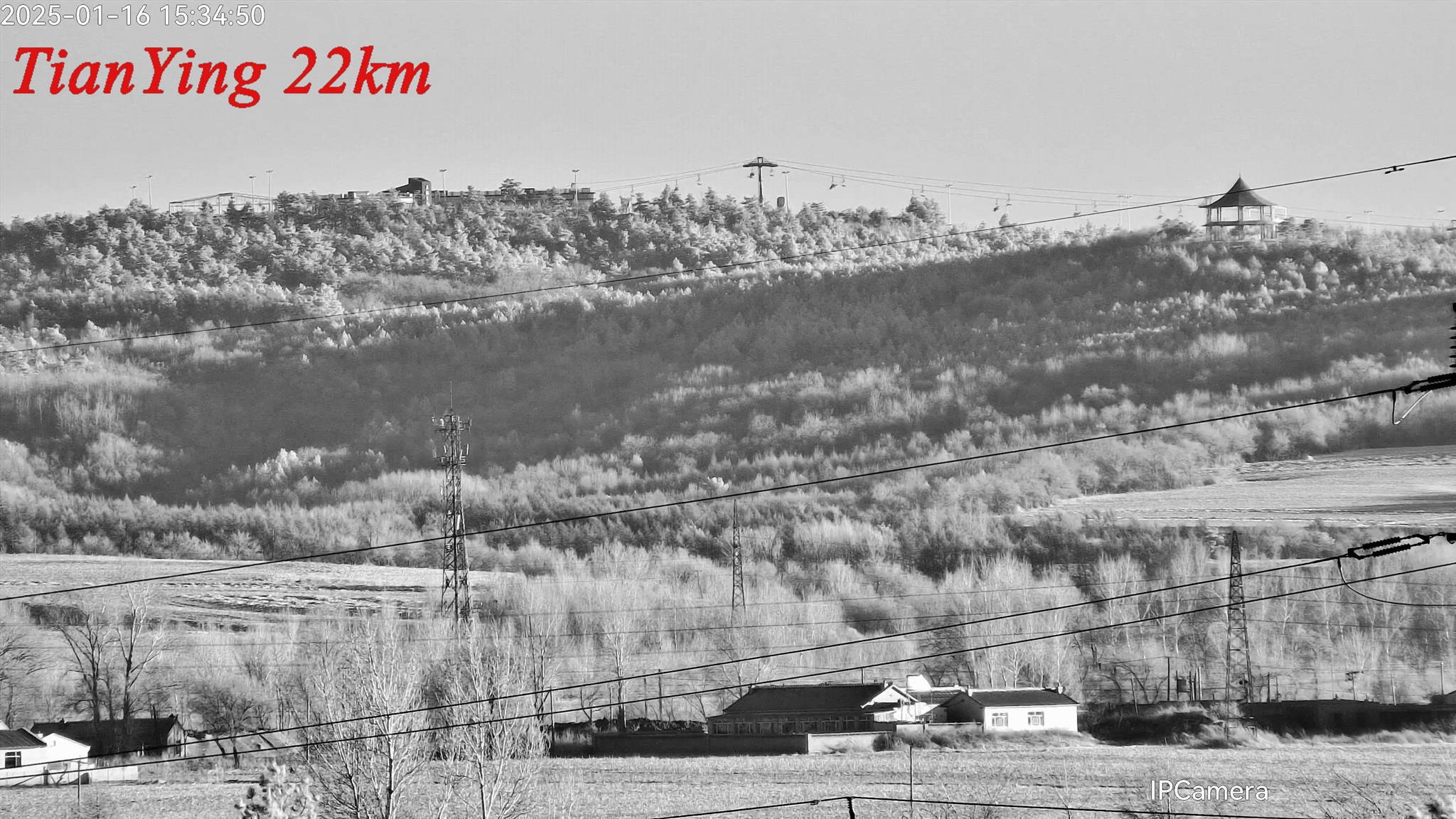

HD800 2MP 12.5mm~800mm Coaxial Optical Zoom Surveillance Security Camera see 19km house and communication pole
